Advanced & Conventional Inspection

Non-Destructive Testing (NDT) Portfolio

Comprehensive volumetric, surface, and ultrasonic examination services executed by ASNT Level II certified specialists in accordance with ASME, API, AWS, and PNRA regulatory standards.

Advanced Ultrasonic Examination

Phased Array Ultrasonic Testing (PAUT)

Fast Tech Inspection’s new Olympus OmniScan X3 PAUT setup with compatible probes, wedges, encoded scanner arrangements, cables, and accessories significantly expands our advanced weld-inspection and recorded-reporting capability.

High-speed encoded linear and sectorial scan recording
Complete electronic data storage with full flaw sizing and depth profiling
Code-compliant alternative or supplement to radiographic testing (RT)

Volumetric Flaw Detection

Conventional Ultrasonic Testing (UT)

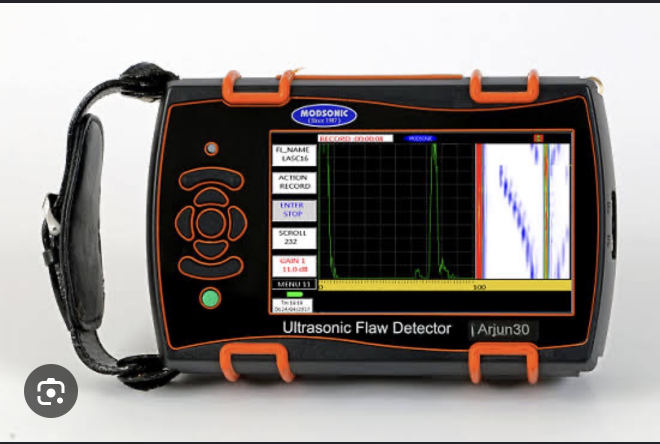

A probe introduces high-frequency sound into the component. Reflections from boundaries or internal discontinuities are analyzed on calibrated digital flaw detectors (Arjun30 / Olympus Epoch) to evaluate defect position, length, and depth against code acceptance criteria.

Longitudinal and shear wave angle-beam testing of full-penetration welds
Accurate precision digital thickness measurement and corrosion profiling
Traceable inspection reports certified by ASNT Level II personnel

Radiation Safety & Radiography

Radiographic Testing (RT)

Radiographic weld examination conducted under approved procedures, project specifications, and strict radiation-safety controls governed by the Pakistan Nuclear Regulatory Authority (PNRA).

Certified Industrial Radiographers and Radiation Protection Officers (RPO)
Radiographic interpretation of piping, pressure vessels, and structural welds
Proven track record: 3+ years continuous RT on Haveli Bahadur Shah (CMEC)

PNRA Safety Compliance

Radiation assignments are performed under rigorous safety controls. Personnel credentials include formal PNRA industrial radiographer and RPO certifications.

Magnetic Testing

Magnetic Particle Testing (MPT)

Rapid, reliable detection of surface and near-surface cracks and seam discontinuities on ferromagnetic materials using AC/DC electromagnetic yokes and high-contrast dry/wet media.

Liquid Penetrant

Dye Penetrant Testing (DPT)

High-sensitivity detection of surface-breaking flaws, porosity, and pinholes on non-porous materials, austenitic stainless steels, and non-ferrous piping components.
